9000 Series - Ceramic pressure sensors for harsh environments

Feeding: 5-30 V constant voltage
Output: mV
Pressure range: 2-100 bar
Temperature range: -40 to 150 °C
Implementation: Gage, ceramic measuring cell, aggressive media resistance

ART.NO: HPSX9000 series

HYBThe 9000 series includes robust pressure sensors and transducers with ceramic measuring cell and piezoresistive technology. The series is designed for high accuracy and long-term stability, even in demanding applications. Models are available for pressure ranges up to 100 bar and offer both analogue and digital interfaces, with options for high temperatures and resistance to aggressive media. Typical applications include HVAC, process and industrial control, pneumatics and measurement applications in harsh environments.

HPSA 9000 - Compact ceramic pressure transducer with mV output and constant voltage supply. Withstands aggressive media and temperatures from -40 to 150 °C. Available in gage version for 2-100 bar.

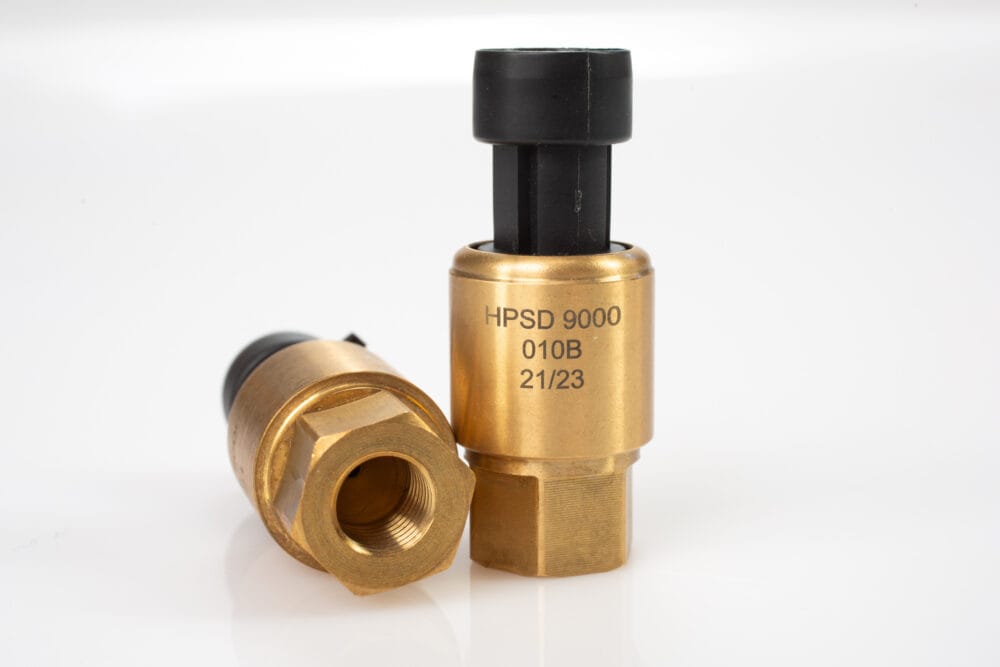

HPSD 9000 - Hermetically sealed pressure transducer with metal housing and IP65/IP67 protection. Analogue 0.5-4.5 V output and 5 V or 7-30 V supply. For 1-100 bar and use with non-corrosive media.

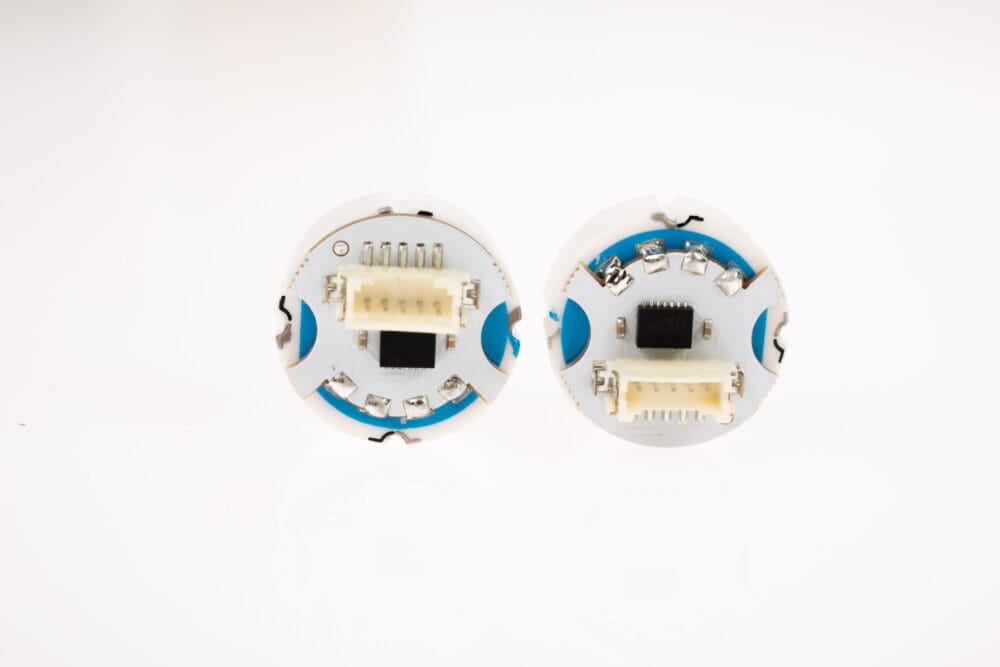

HPSD 9200 - Compact sensor with ceramic measuring cell, ratiometric analogue output (10-90 % of supply) and I²C digital output. High accuracy over 0-70 °C, low energy consumption and pressure range 1-100 bar.
