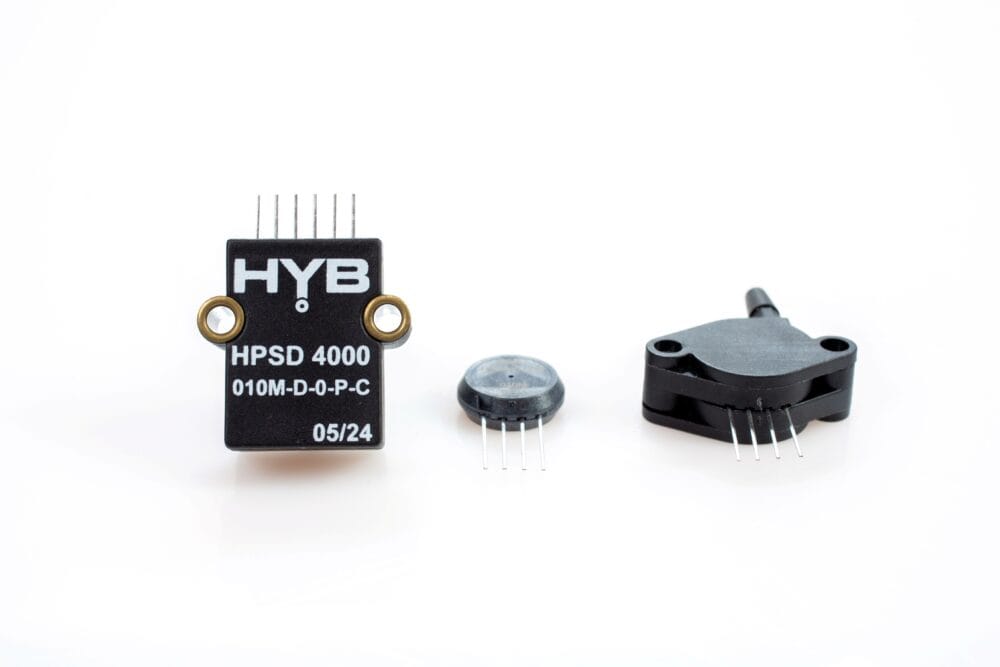

4000 Series - Pressure sensors for precision measurement in harsh environments

ART.NO: HPSX-4000

HYBThe :s 4000 series consists of high performance pressure transmitters for OEM applications where accuracy, stability and reliability are essential. The series offers models for both differential and absolute measurement, with pressure ranges from 10 mbar up to 10 bar. All sensors are temperature compensated and customised for easy integration into applications such as medical, HVAC, process control and leak detection.

HPSD 4000 - Temperature compensated pressure sensor with 5 V supply, analogue (0.5-4.5 V) and I²C output. Pressure range 10 mbar-7 bar. Differential and absolute.

HPSAV 4000 - Robust model for 12-20 V supply with ratiometric mV output. Pressure range 10 mbar-10 bar. Differential and absolute.

HPSAV 4100 - OEM customised sensor with constant voltage, mV output and wide pressure range 10 mbar-10 bar. Differential and absolute.

HPSAV 4110 - Differential sensor for 12-16 V supply with fast response time (100 µs) and mV output. Pressure range 10 mbar-10 bar.

Contact us
  • Specification
  • Documentation

HPSD 4000

  • Feeding: 5 V
  • Output: 0.5-4.5 V analogue, I²C digital
  • Pressure range: 10 mbar - 7 bar
  • Accuracy: ±0.5 %FS (0-70 °C)
  • Implementation: Differential and absolute

HPSAV 4000

  • Feeding: 12-20 V constant voltage
  • Output: Ratiometric mV
  • Pressure range: 10 mbar - 10 bar
  • Accuracy: ±0.2-0.5 %FS
  • Implementation: Differential and absolute

HPSAV 4100

  • Feeding: Constant voltage
  • Output: mV
  • Pressure range: 10 mbar - 10 bar
  • Accuracy: ±0.2-0.5 %FS
  • Implementation: Differential and absolute

HPSAV 4110

  • Feeding: 12-16 V constant voltage
  • Output: mV
  • Pressure range: 10 mbar - 10 bar
  • Accuracy: ±0.2-0.5 %FS
  • Implementation: Differential only
  • Extra: Fast response time (100 µs)
