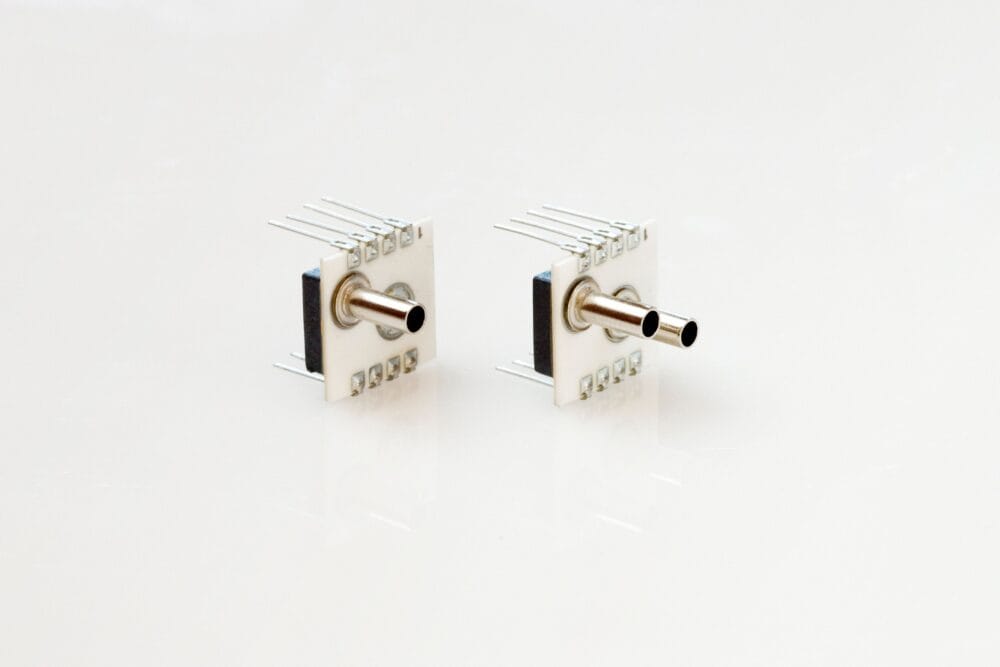

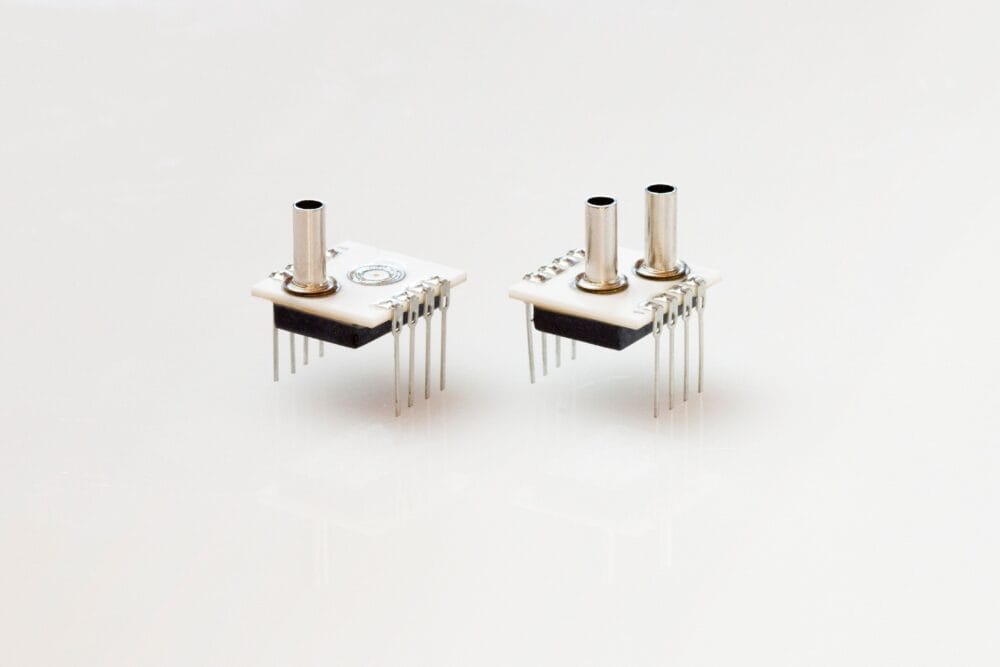

3000 Series - high-performance pressure sensors for demanding applications

ART.NO: HPSX3000 series

HYBThe 3000 Series offers a complete range of pressure transducers for precision measurement of differential, gage and absolute pressure. With advanced signal processing, temperature compensation and rugged construction, these sensors are ideal for OEM applications in medical, HVAC, industrial automation, process control, air flow measurement and more. The range includes models with different supply voltages, communication interfaces and pressure ranges from ultra-low 1 mbar to high 7 bar, providing maximum flexibility for integration into different systems and environments.

HPSAC 3000
Compact constant current pressure transducer with zero calibration. Provides low level output (mV) for external amplification. Available in pressure ranges 10 mbar to 7 bar and is suitable for OEM designs where customised signal conditioning is used.

HPSAV 3000
Pressure sensor with constant voltage supply, DIP package and both zero and span calibration. Available for pressure ranges from 10 mbar to 7 bar. Temperature compensated for 0-70 °C and suitable for medical, HVAC, leak detection and process control.

HPSD 3000
Similar to the 3100 series but with fixed 5 V supply voltage and standardised 0.5-4.5 V analogue output. Offers pressure ranges from 1 mbar to 7 bar and support for gage, differential and absolute measurement. Ideal where simple analogue integration is a priority.

HPSD 3100
Flexible pressure transducer with pressure ranges from ultra-low 1 mbar to 7 bar. Support for gage, differential and absolute pressure. Supplied with ratiometric analogue output as well as I²C (SPI on request) and overall accuracy up to 0.5 %FS. Optimised for high performance in OEM applications.

HPSD 3900
Versatile sensor for both differential and absolute pressure with dual pressure ports. Features programmable temperature compensation and overall accuracy down to 0.5 %FS over -25 °C to 85 °C. Available with pressure ranges from 10 mbar to 100 mbar (differential) and 200-1200 mbar (absolute). Support for both analogue and I²C interfaces.

Contact us
  • Specification
  • Documentation

HPSAC 3000

  • Feeding: Constant current (1.5-3.0 mA)
  • Output: 25-150 mV (depending on pressure range)
  • Pressure areas: 10 mbar - 7 bar
  • Accuracy: ±0.2-0.5 %FS (linearity + hysteresis)
  • Temperature range: 0 to 70 °C (compensated)
  • Implementation: Differential, gage or absolute

HPSAV 3000

  • Feeding: Constant voltage (10-20 V)
  • Output: 25-80 mV (depending on pressure range)
  • Pressure areas: 10 mbar - 7 bar
  • Accuracy: ±0.2-0.5 %FS (linearity + hysteresis)
  • Temperature range: 0 to 70 °C (compensated)
  • Implementation: Differential, gage or absolute

HPSD 3000

  • Feeding: 5 V
  • Output: 0.5-4.5 V analogue, I²C digital (15 bit)
  • Pressure areas: 1 mbar - 7 bar
  • Accuracy: Up to ±0.5 %FS (at 0-70 °C)
  • Temperature range: 0 to 70 °C (compensated)
  • Implementation: Differential, gage or absolute

HPSD 3100

  • Feeding: 3-5,5 V
  • Output: 10-90 % of Vcc analogue, I²C digital (16 bit), SPI on request
  • Pressure areas: 1 mbar - 7 bar
  • Accuracy: Up to ±0.5 %FS (at 0-70 °C)
  • Temperature range: 0 to 70 °C (compensated)
  • Implementation: Differential, gage or absolute

HPSD 3900

  • Feeding: 3-5,5 V
  • Output: 10-90 % of Vcc analogue, I²C digital (16 bit)
  • Pressure areas:
    • Differential: 10-100 mbar
    • Absolute: 200-1200 mbar
  • Accuracy: Up to ±0.5 %FS (at -25 to 85 °C)
  • Temperature range: -25 to 85 °C (compensated)
  • Implementation: Differential and absolute, dual pressure ports
